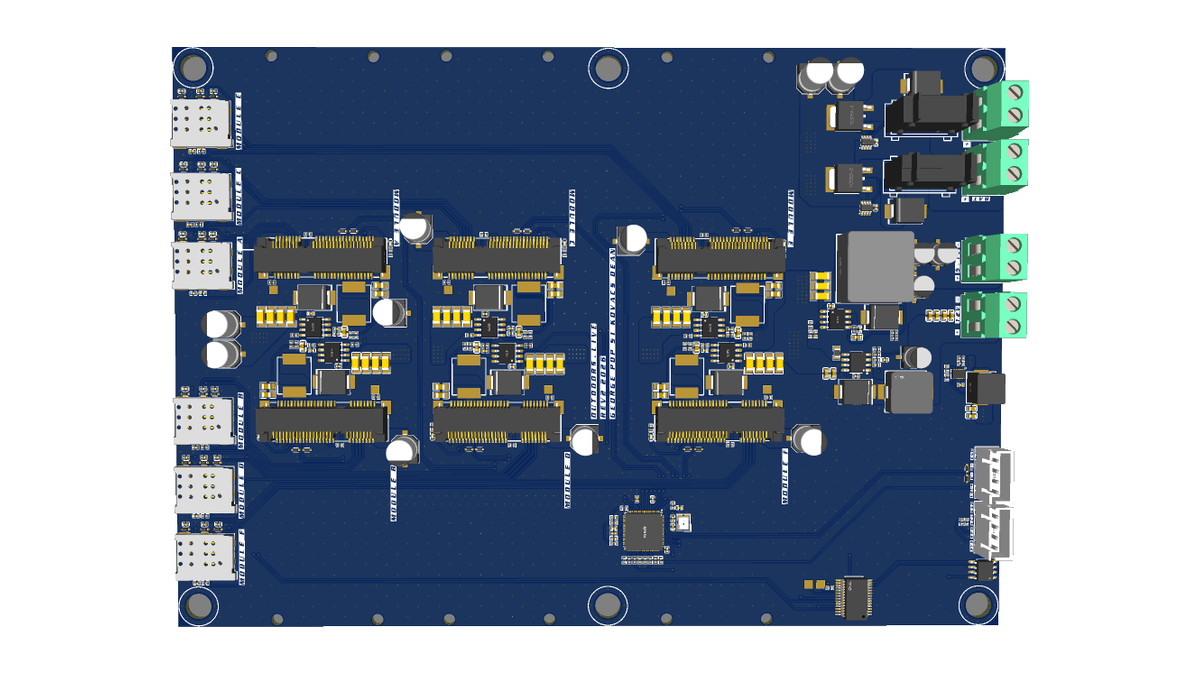

3D render · Designed in EDA

PDU and Control PCB

Power distribution and control board for six external modems.

PDU and Control PCB

About this board.

Power distribution and control board built to run six external modems from a single 4-layer PCB. Six mini PCIe (mPCIe) slots, each paired with its own SIM slot, are powered from two battery connectors, with a total capacity of 30 A.

Specs at a glance.

Layers
4-layer
Modem slots
6× mPCIe
SIM slots
6
Total capacity
30 A

Design highlights.

·

Six mPCIe slots for external modems

·

Six SIM slots, one per modem

·

Two battery connectors for two batteries

·

30 A total capacity on a 4-layer stackup
